Installation Technology

Tight construction schedules require efficient and precise installation techniques.

Mechanised track construction installation technology gantry crane PK 1-20 ES

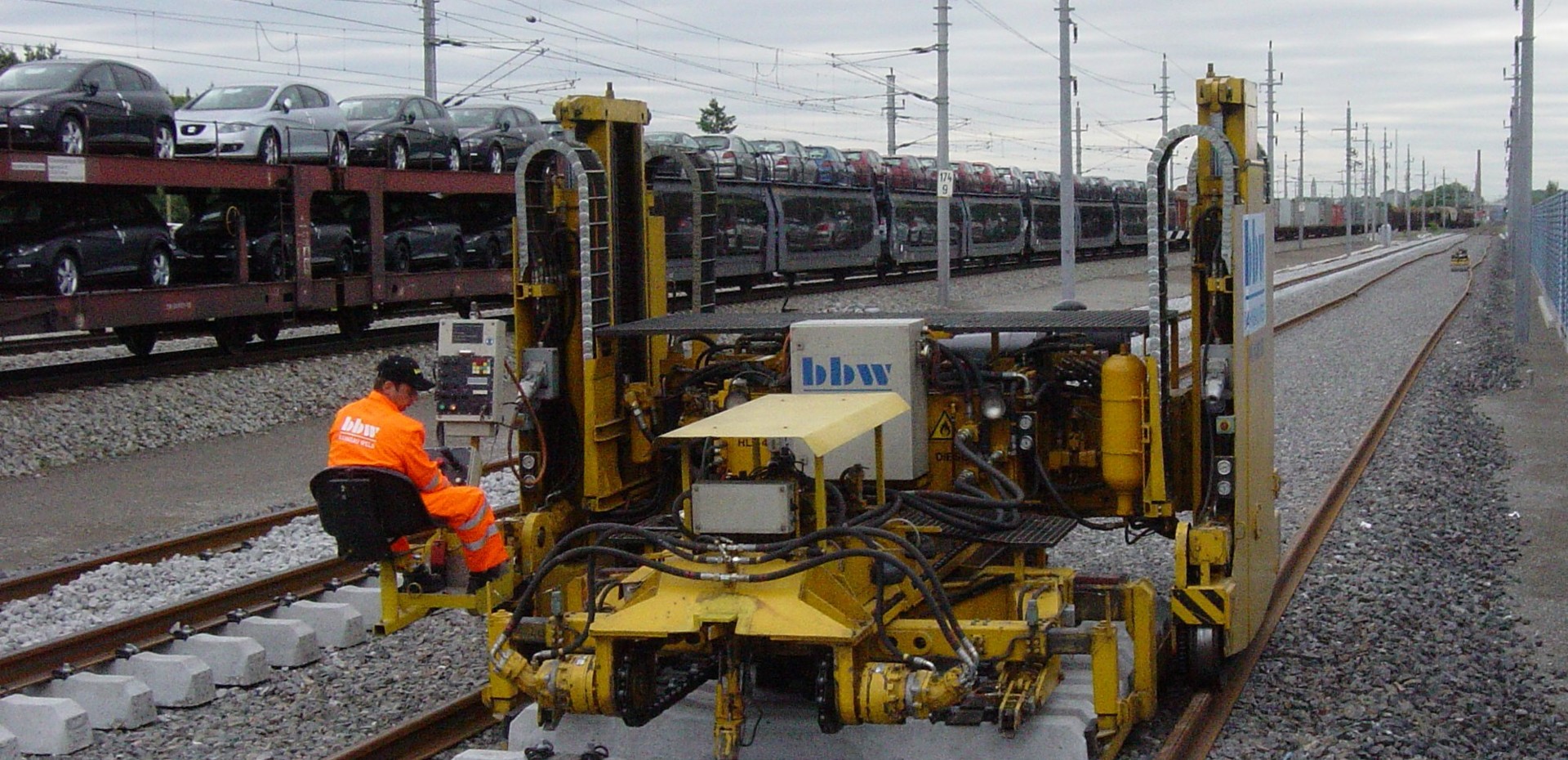

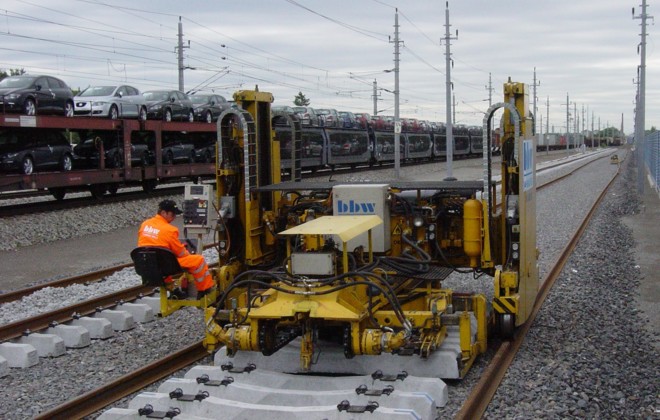

Gantry Crane PK 1-20 ES

With the PK 1-20 ES gantry crane, the sleepers are picked up by the sleeper transport carriage and placed precisely on the ballast bed at a freely selectable sleeper spacing. In addition to the individual laying of wooden and concrete sleepers, it is also possible to lay Y-steel sleepers.

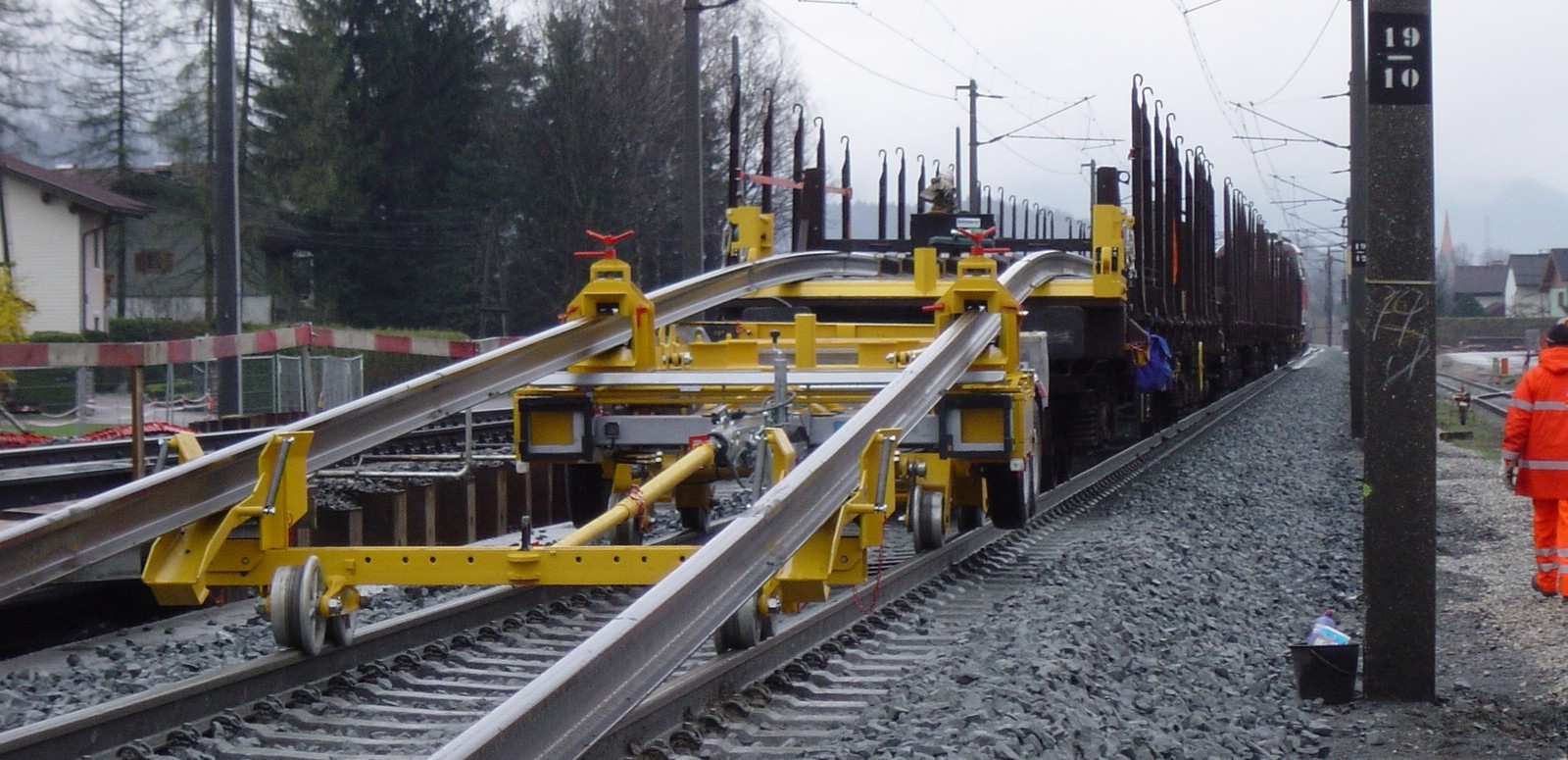

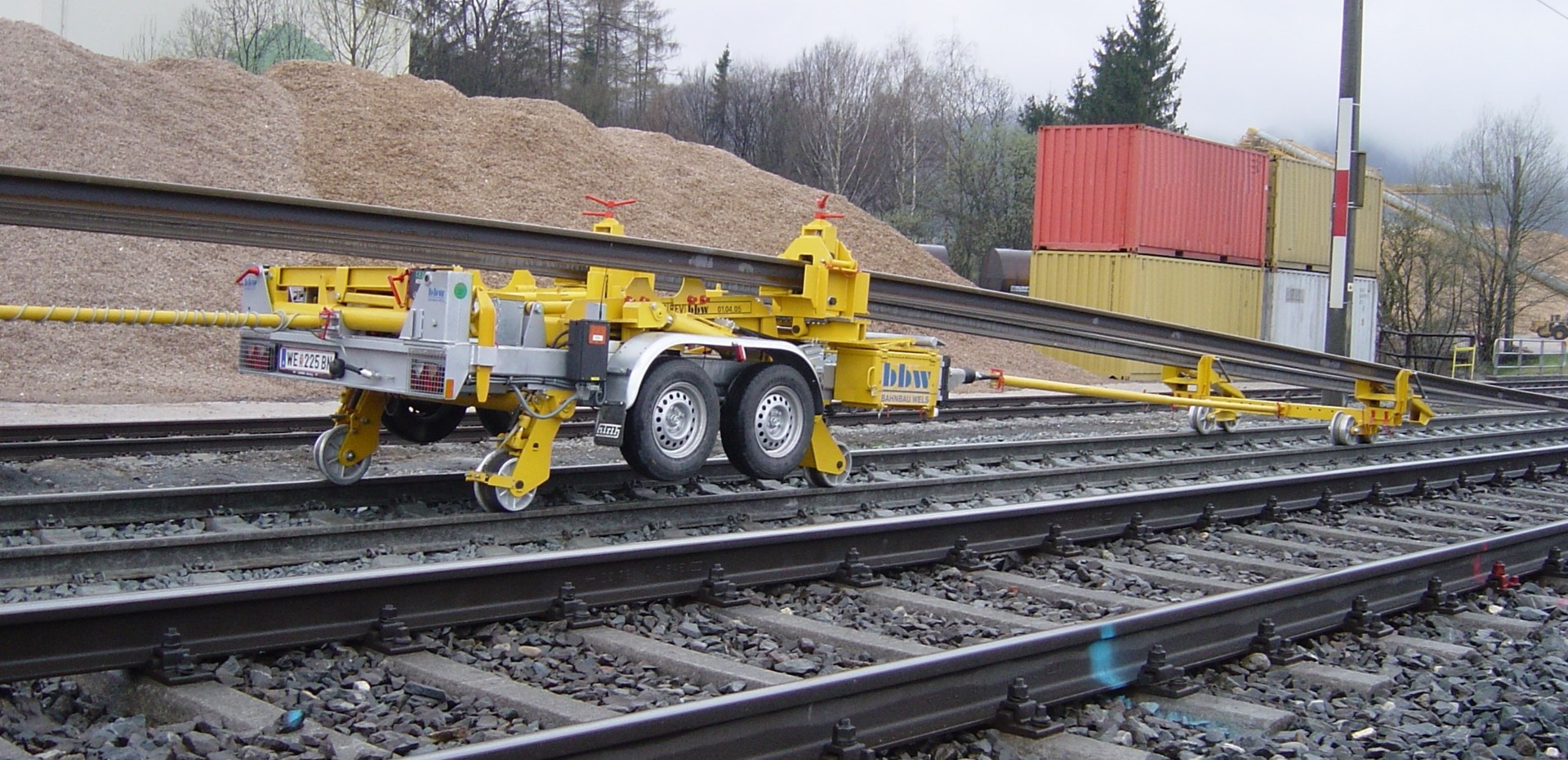

The mobile long-rail unloading unit EMD is used to remove long-rails from long-rail fittings on the construction site quickly, safely and carefully in a continuous process.

Any rail lengths up to 120 m, including various rail lengths, can be efficiently deposited either in the middle of the track or in the area of the sleeper heads.

What we can do for you:

  • Sleeper installation with gantry crane PK 1-20 ES
  • Removal of long rails using the EMD mobile unloading system for long rails in a continuous process
