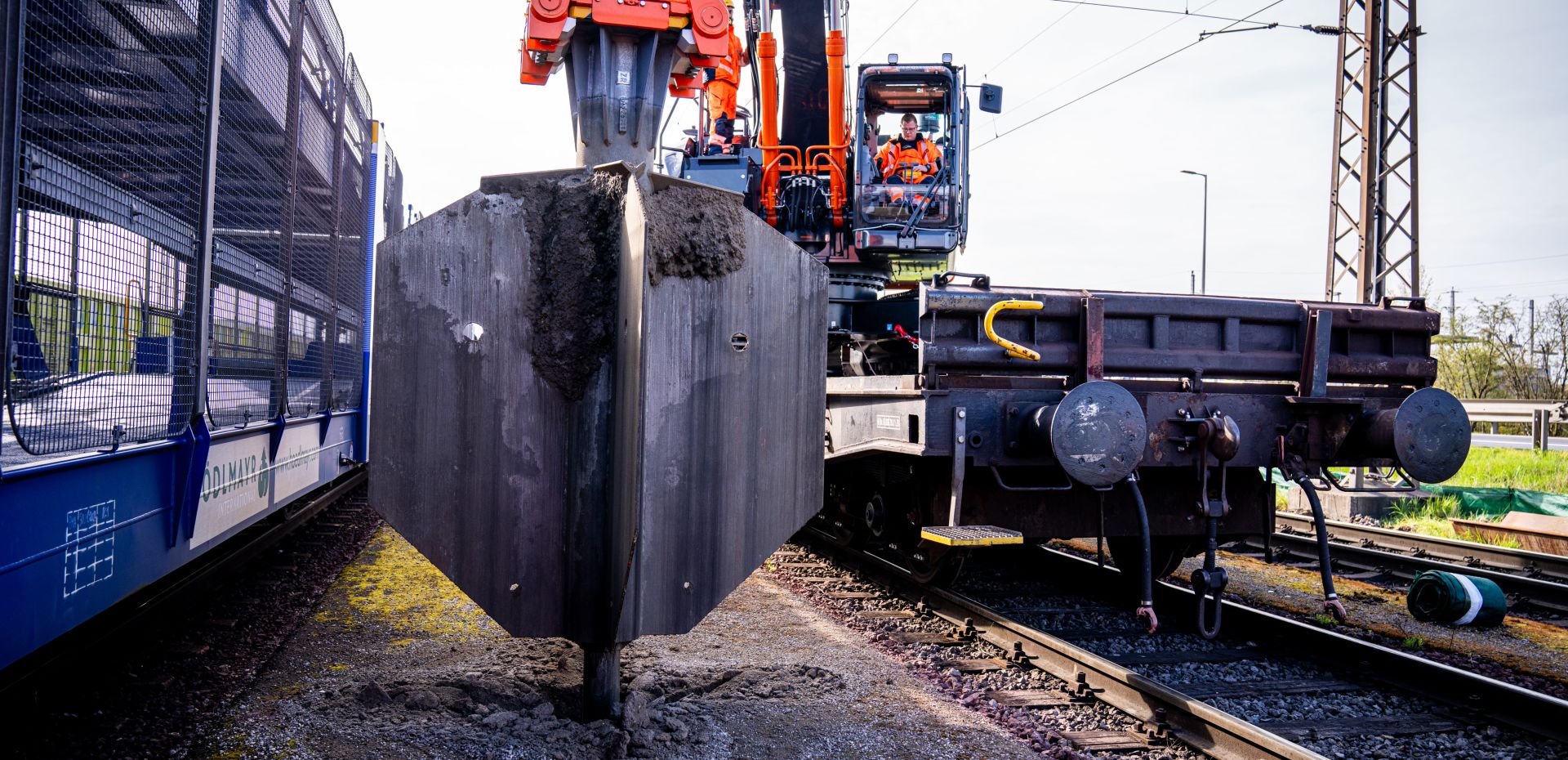

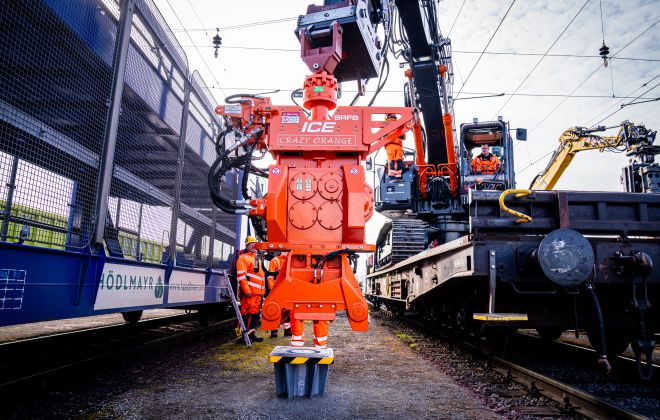

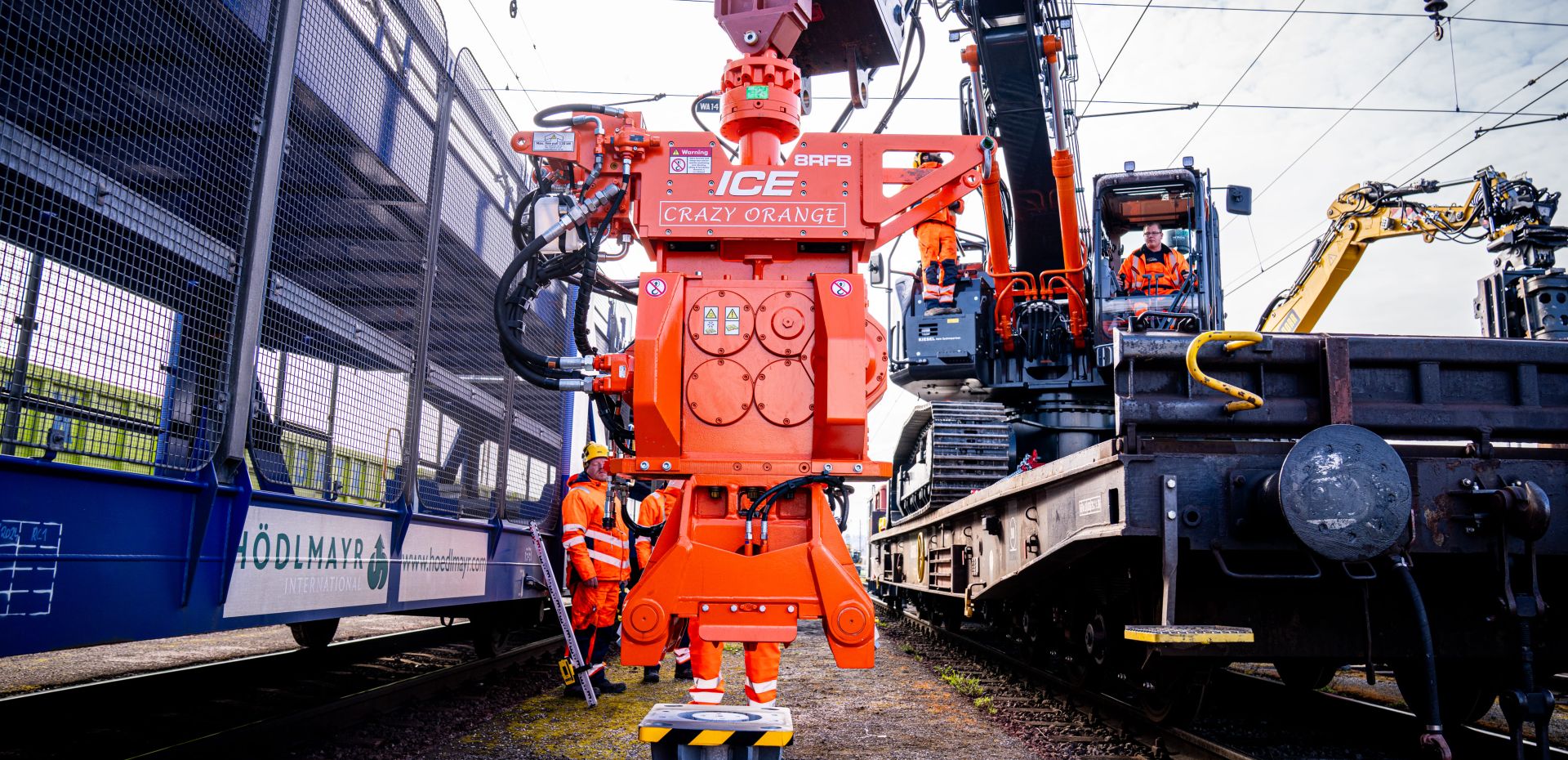

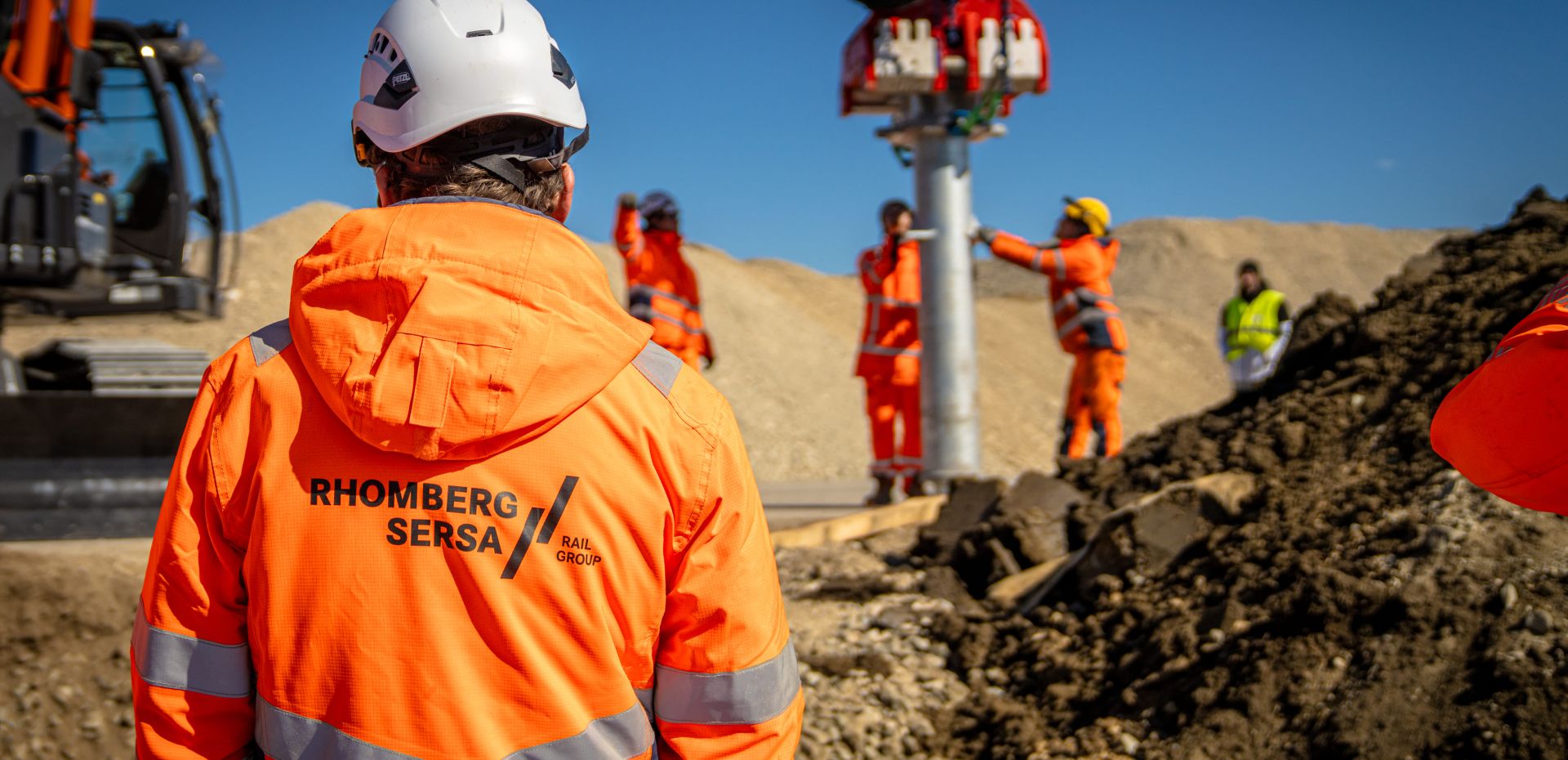

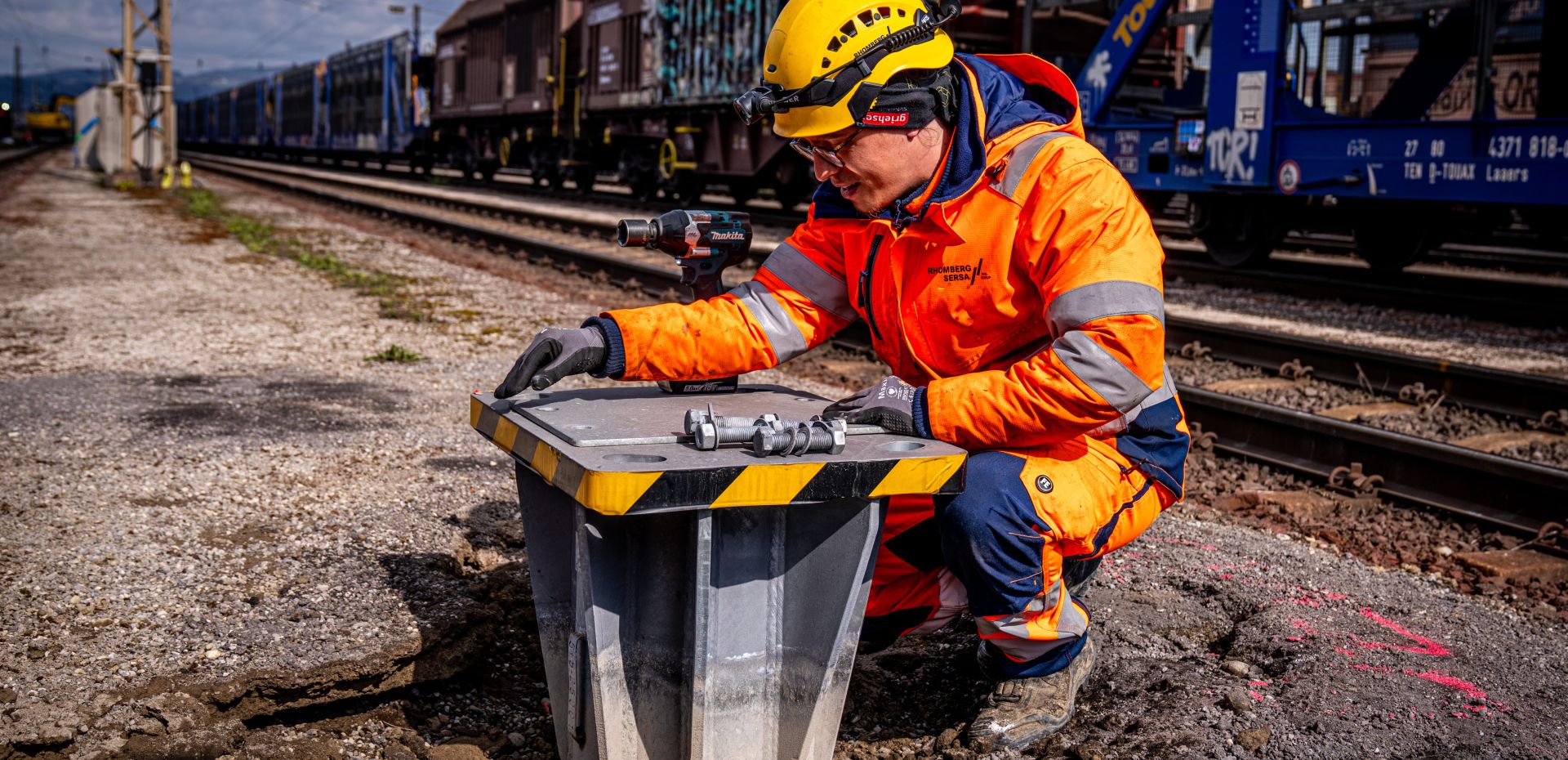

The GSF vibration system enables foundations for overhead line, signaling, lighting and noise barrier systems to be installed quickly, safely and with efficient use of resources. The GSF foundation is vibrated into the ground using a rail-road excavator fitted with a specially developed hydraulic vibration unit.
The high-frequency vibration temporarily loosens the soil immediately surrounding the foundation. During the installation the soil is being compacted around the foundation this guaranties secure support. No conventional excavation or on-site concreting is required. Consequently, there is no excavated material to remove and no curing time to consider.
The foundation is fully load-bearing immediately after installation, allowing subsequent construction work and mast installations to continue without delay. If required, the foundations can also be completely removed and reused.
Our Services
- Planning and coordination of foundation projects
- Installation of GSF foundations for overhead line, noise barrier, lighting and signaling systems
- Supply and installation of fully removable and reusable GSF foundations
- Support achieving technical approval and certification
Your Benefits
- Installation of one foundation in approximately 15 minutes
- Fully load-bearing immediately after installation
- Faster construction processes and efficient use of short track possessions
- No conventional excavation or on-site concrete works
- No excavated soil to remove or transport
- Flexible installation, even in confined spaces
- Adaptable to different mast types, site conditions and project requirements
- Fully removable, reusable and recyclable
- Durable, cost-effective and resource-efficient
